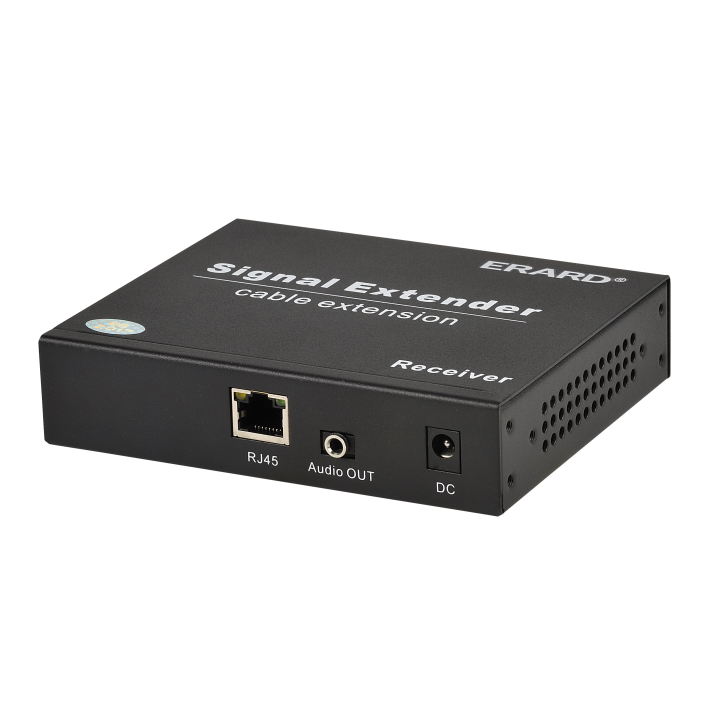

Single Receiver for ERARD VGA Signal Extender

Technical file

• Product features
• EAN13
  3700117229017
• Technical features
• Erard D3C reference
  EXTVGA120KVMR
• Plug & Play (PnP)
  Yes
• Maximum signal transmission distance
  120 m
• Colour (Connect)
  Black
• Finish : Connectors
  Nickel-plated connectors
• Certifications
  EMC EN 55024 :2010+A1 :2015
  EMC EN 55032 :2015
  EMC EN 61000-3-2 :2014
  EMC EN 61000-3-3 :2013
  ErP EN 50563+A1 : 2013, EN 50564 : 2011
  LVD EN 60950-1 :2006 +A11 :2009 +A1 : 2010 +A12 : 2011 +A2 : 2013
  ROHS EN 62321-3-1 :2013
  ROHS EN 62321-4 :2013
  ROHS EN 62321-5 :2013
  ROHS EN 62321-6 :2015
  ROHS EN 62321-7-1 :2015
  ROHS EN 62321-7-2 :2017
  ROHS EN 62321-8 :2017
• Receiver dimensions (LxDxH)
  130 x 114 x 30 mm
• Dimensions of the housing (LxDxH)
  130 x 114 x 30 mm
• Power supply receiver
  alimentation (9 V / 2 A) fournie
• Power supply
  Power supply (9V / 2A) included
• Automatic synchronization of resolutions
  Yes
• TCP/IP Network Compatible
  Yes
• Material of housing
  métal
• Product weight
  600.00 g
• Product height
  225.00 mm
• Product depth
  55.00 mm
• Receiver weight
  400.00 g
• Resolutions
  FULL HD - 1920x1080p @60Hz
• Warranty period
  2 years
